Plot the fitted survival surface over temperature and duration

plot_survival_surface() draws the fitted survival probability as a filled heatmap over a temperature-by-duration grid, with contour lines, using predict_survival_surface(). Duration is on a log10 axis. For a grouped fit the surface is faceted by group.

Usage

plot_survival_surface(fit, temps = NULL, times = NULL, contour = TRUE, ...)

Arguments

fit: A profile_tls fit from fit_tls().
temps, times: Numeric grids passed to predict_survival_surface(). Defaults span the observed ranges.
contour: Logical; overlay contour lines (default TRUE).
...: Reserved; must be empty.

Value

A ggplot object.

Examples

d <- simulate_tls(family = "binomial", CTmax = 36, z = 4, seed = 1)
fit <- fit_tls(d, y = survived, n = total, time = duration, temp = temp,
               family = "binomial", tref = 1)

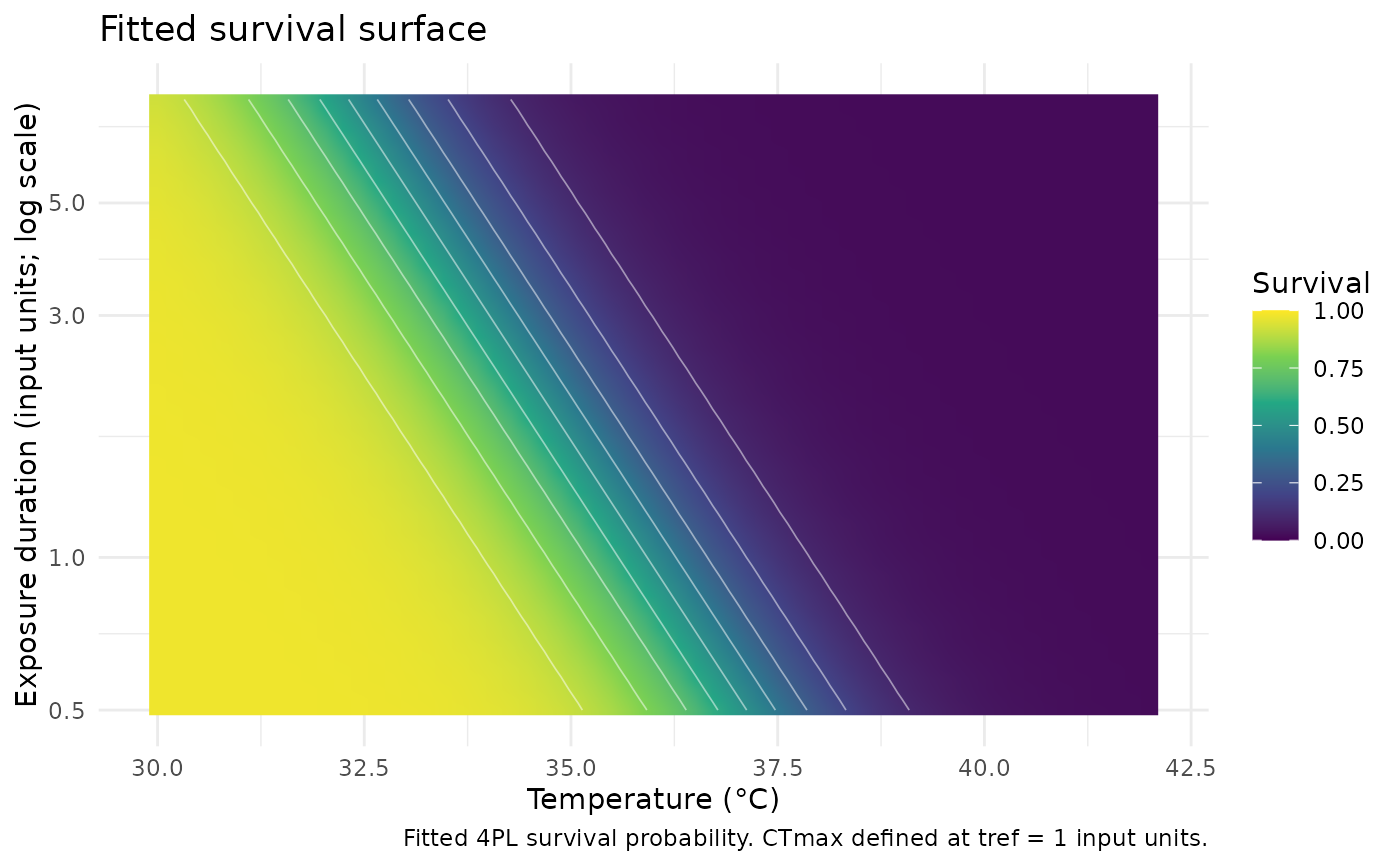

plot_survival_surface(fit)
